Entegra Coach Vision Motor Home Class A

Previous
Next
1 of 12

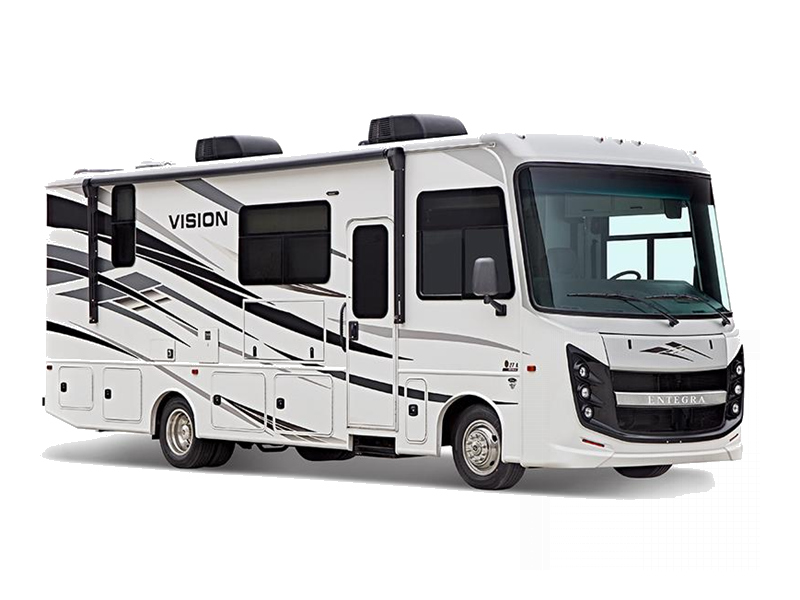

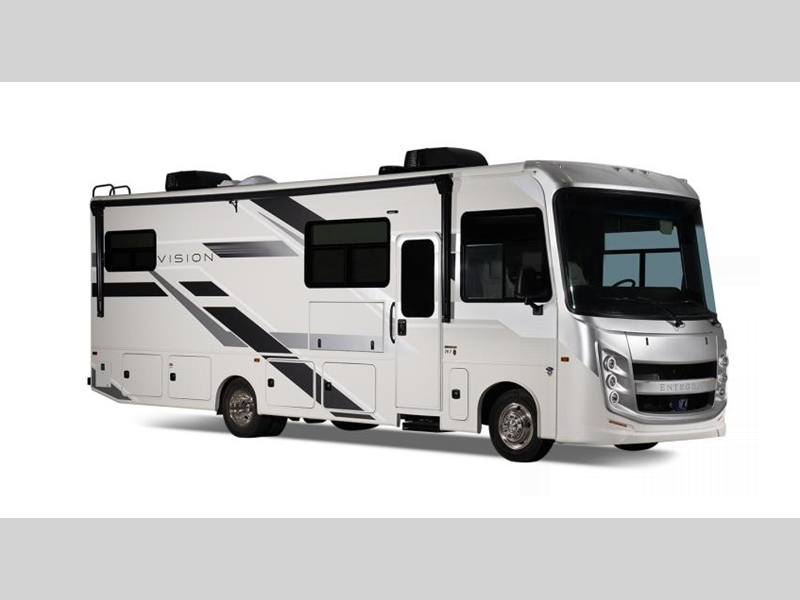

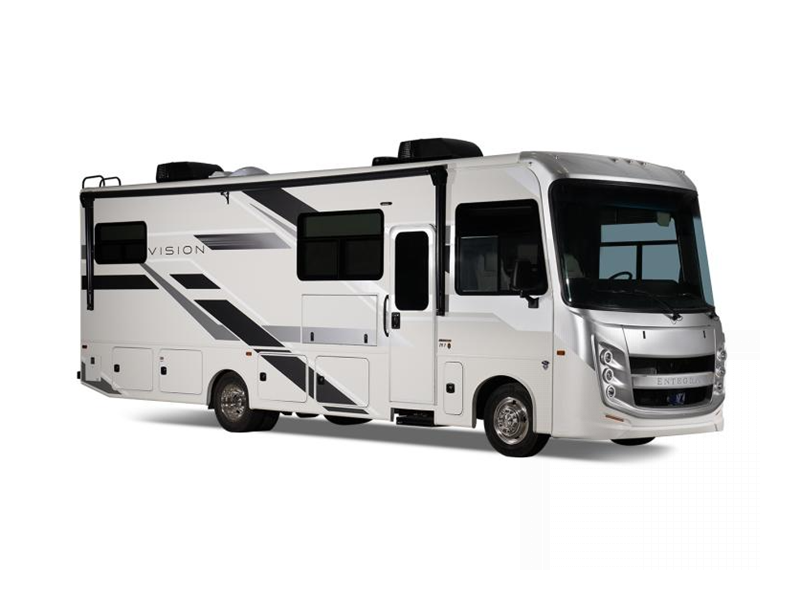

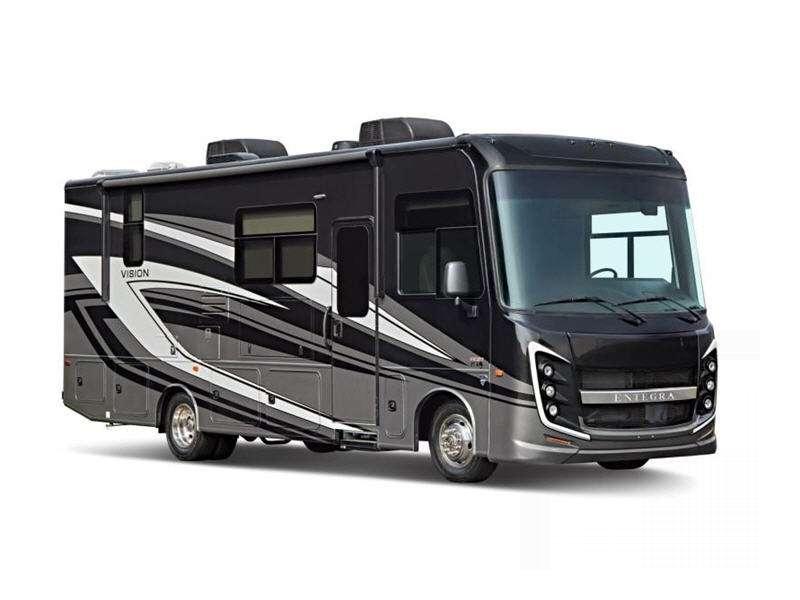

The all-new Entegra Vision class A gasoline coach is here!  Built on a Ford F53 chassis with 320 horsepower and a Triton V10 engine, you can now make your travel vision come to life. These units feature an exterior entertainment center, slam-latch baggage doors with a lockable pass-through compartment, frameless windows, and an entry door including the industry's largest view window and shade.  You will also find dual AC units on most models, plus high-intensity recessed LED ceiling lights in the interior, and so much more!



Like all Entegra Coach models, excellence doesn't stop with their superior craftsmanship or beautiful interiors, Entegra takes it a bit further and each new Vision coach is backed by a 2-year limited warranty providing you a high level of service with a peace of mind knowing you are protected.



Come take a closer look and see the Entegra Coach Vision - where excellence is brought to life!  Select your favorite model today!

  • Vision 26X

    Vision 26X Floorplan Image

    Entegra Coach Vision class A gasoline motorhome 26X highlights: Rear Corner Bath ... more about Vision 26X

    Specifications

    Sleeps 6
    Slides 2
    Length 28 ft
    Ext Width 8 ft 5 in
    Ext Height 12 ft 5 in
    Int Height 7 ft
    Interior Color Aspen
    Exterior Color Crimson Night
    Hitch Weight 5000 lbs
    Gross Weight 16000 lbs
    Fresh Water Capacity 53 gals
    Grey Water Capacity 40 gals
    Black Water Capacity 32 gals
    Tire Size 19.5"
    Furnace BTU 30000 btu
    Generator Onan Marquis Gold Genset 4,000 watt
    Fuel Type Gasoline
    Engine Triton 6.8L V10
    Chassis Ford F53
    Horsepower 320 hp
    Fuel Capacity 80 gals
    Wheelbase 178 in
    Number Of Bunks 1
    Available Beds Queen
    Torque 460 ft-lb
    Refrigerator Size 8 cu ft
    Cooktop Burners 3
    Shower Size 24" x 40"
    Number of Awnings 1
    Axle Weight Front 6500 lbs
    Axle Weight Rear 11000 lbs
    LP Tank Capacity 56 lbs.
    Water Heater Capacity 6 gal.
    Water Heater Type Gas/Electric
    AC BTU 15000 btu
    TV Info LR 39" LED, Ext. LED
    Awning Info 13' Electric w/LED Lights
    Gross Combined Weight 23000 lbs
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

  • Vision 31R

    Vision 31R Floorplan Image

    Entegra Coach Vision class A gasoline motorhome 31R highlights: Bunk Beds Bunk ... more about Vision 31R

    Specifications

    Sleeps 8
    Slides 2
    Length 34 ft 5 in
    Ext Width 8 ft 5 in
    Ext Height 12 ft 5 in
    Int Height 7 ft
    Interior Color Aspen
    Exterior Color Crimson Night
    Hitch Weight 5000 lbs
    Gross Weight 20500 lbs
    Fresh Water Capacity 72 gals
    Grey Water Capacity 40 gals
    Black Water Capacity 50 gals
    Tire Size 19.5"
    Furnace BTU 30000 btu
    Generator Onan Marquis Gold Genset 4,000 watt
    Fuel Type Gasoline
    Engine Triton 6.8L V10
    Chassis Ford F53
    Horsepower 320 hp
    Fuel Capacity 80 gals
    Wheelbase 228 in
    Number Of Bunks 3
    Available Beds Queen
    Torque 460 ft-lb
    Refrigerator Size 8 cu ft
    Cooktop Burners 3
    Shower Size 30" x 36"
    Number of Awnings 1
    Axle Weight Front 7000 lbs
    Axle Weight Rear 13500 lbs
    LP Tank Capacity 56 lbs.
    Water Heater Capacity 6 gal.
    Water Heater Type Gas/Electric
    AC BTU 22000 btu
    TV Info LR 39" Lift LED TV, Bunk TVs, Ext. LED TV
    Awning Info 13' Electric w/LED Lights
    Gross Combined Weight 26000 lbs
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

  • Vision 31V

    Vision 31V Floorplan Image

    Entegra Coach Vision class A gasoline motorhome 31V highlights: Two Slides Split ... more about Vision 31V

    Specifications

    Sleeps 6
    Slides 2
    Length 32 ft 1 in
    Ext Width 8 ft 5 in
    Ext Height 12 ft 5 in
    Int Height 7 ft
    Interior Color Aspen
    Exterior Color Crimson Night
    Hitch Weight 5000 lbs
    Gross Weight 18000 lbs
    Fresh Water Capacity 72 gals
    Grey Water Capacity 40 gals
    Black Water Capacity 50 gals
    Tire Size 19.5"
    Furnace BTU 30000 btu
    Generator Onan Marquis Gold Genset 4,000 watt
    Fuel Type Gasoline
    Engine Triton 6.8L V10
    Chassis Ford F53
    Horsepower 320 hp
    Fuel Capacity 80 gals
    Wheelbase 190 in
    Number Of Bunks 1
    Available Beds Queen
    Torque 460 ft-lb
    Refrigerator Size 8 cu ft
    Cooktop Burners 3
    Shower Size 30" x 36"
    Number of Awnings 1
    Axle Weight Front 7000 lbs
    Axle Weight Rear 12000 lbs
    LP Tank Capacity 56 lbs.
    Water Heater Capacity 6 gal.
    Water Heater Type Gas/Elecric
    AC BTU 22000 btu
    TV Info LR 39" LED, Ext. LED
    Awning Info 16' Electric w/LED Lights
    Gross Combined Weight 23000 lbs
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

  • Vision 29S

    Vision 29S Floorplan Image

    Entegra Coach Vision class A gasoline motorhome 29S highlights: Full Wall Slide ... more about Vision 29S

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 6
    Slides 1
    Length 31 ft 4 in
    Ext Width 8 ft 5 in
    Ext Height 12 ft 5 in
    Int Height 7 ft
    Interior Color Aspen
    Exterior Color Crimson Night
    Hitch Weight 5000 lbs
    Gross Weight 18000 lbs
    Fresh Water Capacity 72 gals
    Grey Water Capacity 49 gals
    Black Water Capacity 50 gals
    Tire Size 19.5"
    Furnace BTU 30000 btu
    Generator Onan Marquis Gold Genset 4,000 watt
    Fuel Type Gasoline
    Engine Triton 6.8L V10
    Chassis Ford F53
    Horsepower 320 hp
    Fuel Capacity 80 gals
    Wheelbase 190 in
    Number Of Bunks 1
    Available Beds Queen
    Torque 460 ft-lb
    Refrigerator Size 8 cu ft
    Cooktop Burners 3
    Shower Size 30" x 36"
    Number of Awnings 1
    Axle Weight Front 7000 lbs
    Axle Weight Rear 12000 lbs
    LP Tank Capacity 56 lbs.
    Water Heater Capacity 6 gal.
    Water Heater Type Gas/Electric
    AC BTU 22000 btu
    TV Info LR 39" Swivel LED, Ext. LED
    Awning Info 23' Electric w/LED Lights
    Gross Combined Weight 23000 lbs
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

Vision Features:

Standard Features (2019)



Chassis

  • Ford F53 16,000-lb (26X)/18,000-lb (29S, 31V)/ 20,500-lb (31R) GVWR chassis
  • Engine 6.8L Triton V-10 320 HP gas engine with electronic fuel injection and 460 LB-FT torque
  • Transmission 6-speed automatic TorqShift transmission with overdrive and tow haul mode
  • Hitch 5,000-lb. rear hitch receiver with dual connector & seven-pin plug
  • Braking System front and rear disc, four-wheel anti-lock brakes
  • Standard front & rear stabilizer bars. Computer-balanced driveshaft. Jounce bumpers.
  • Tires 19.5-inch Michelin radial tires
  • 12V Chassis Battery
  • 175-amp alternator

Construction

  • Bead-foam insulation (R-24 max roof, R-9 max floor, R-8 max walls)
  • White, high-gloss gel coat fiberglass exterior walls

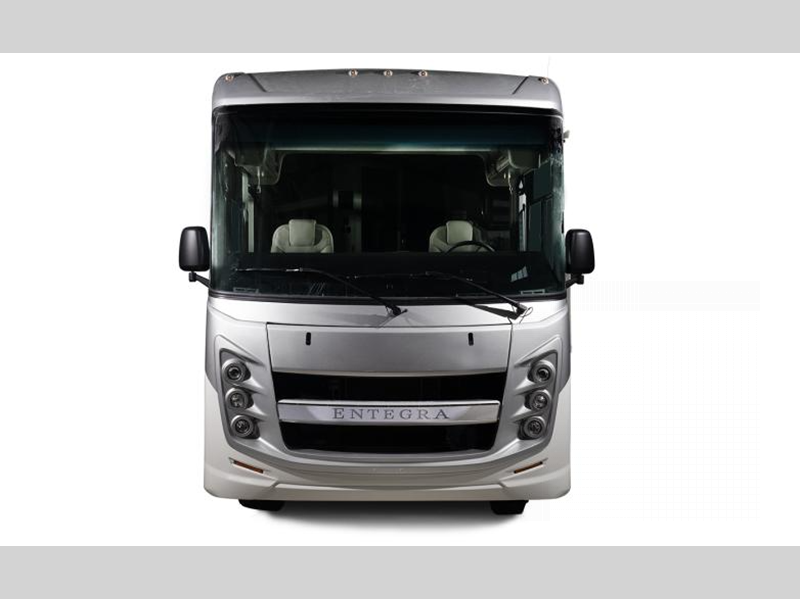

  • Seamless, one-piece front cap w/partial paint

Heat, AC, Water & Power

  • 56-lb., 16.5-gallon propane tank
  • Auto-ignition, 30,000-BTU ducted furnace
  • (2) 11,000-BTU A/C (N/A 26X), 15,000-BTU A/C in 26X
  • 30-amp electrical service cord
  • Onan Marquis Gold Genset 4,000-watt generator
  • 1,000-watt inverter powers main TV, rear bedroom TV, exterior TV, entertainment center
  • 12V house battery
  • Energy management system
  • Water filtration system
  • 12V demand water pump
  • 6-gallon gas/electric water heater

Exterior

  • Vinyl graphics
  • LED marker lights
  • Third brake light
  • Electric-powered, double-step entry
  • Entrance door with the industry's largest travel view window and shade
  • Slideout awning toppers

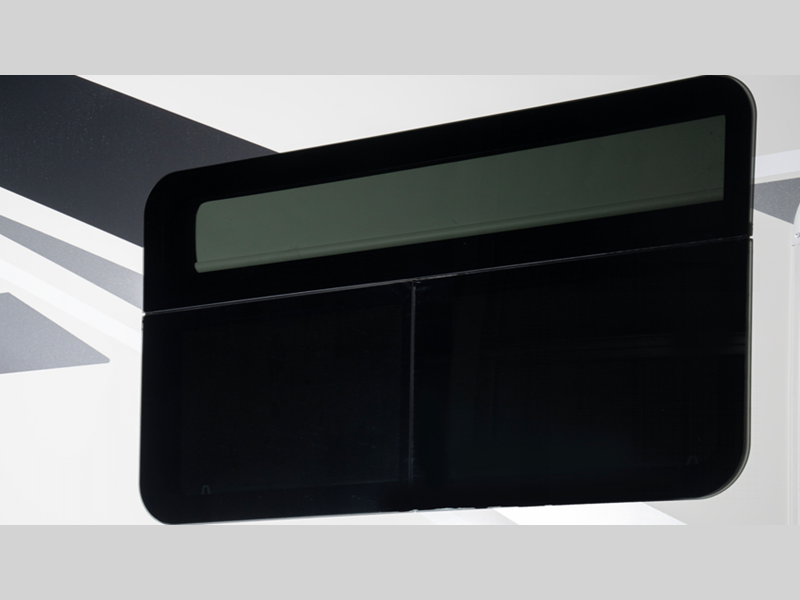

  • Frameless windows
  • Prep for satellite dish
  • Digital antenna with powered amplifier
  • 30-amp electrical service cord
  • Outside shower

Cockpit

  • Linoleum flooring
  • Power sun shade on front windshield
  • Six-way power driver seat
  • Automatic hydraulic leveling jacks

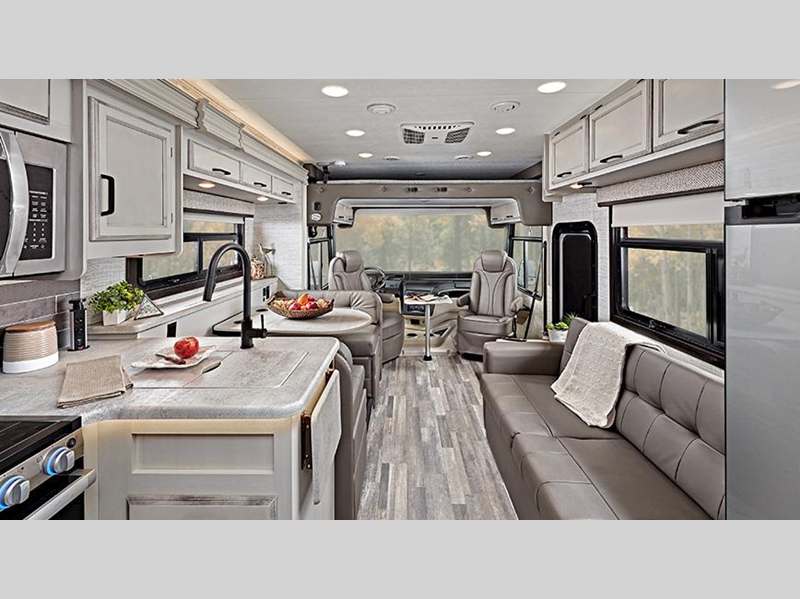

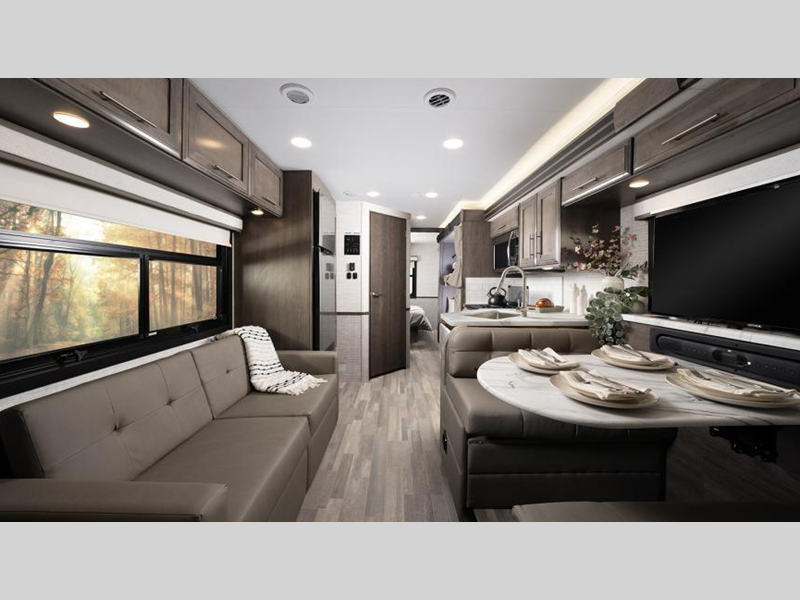

Interior

  • High-intensity recessed LED ceiling lights
  • Decorative window valance
  • Cable TV hook-up with RG6 coax & video selector switch

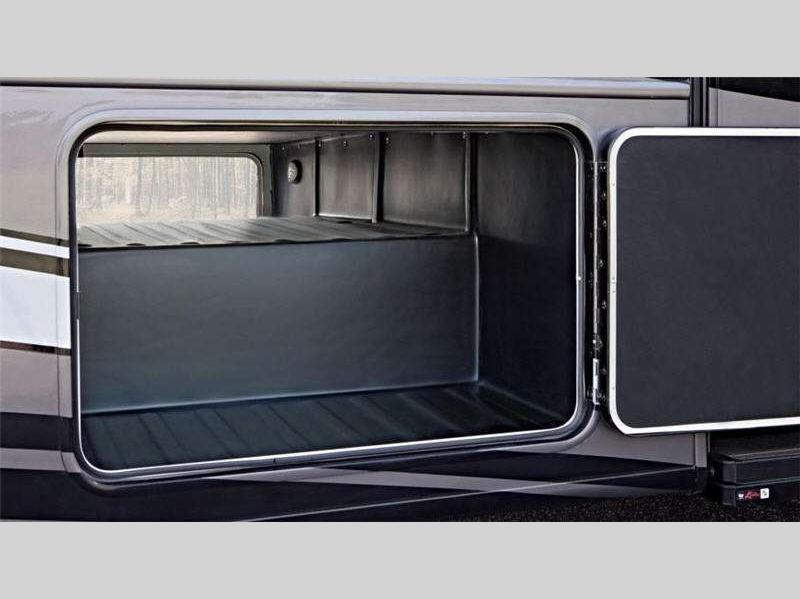

  • Lockable pass-through storage compartment with side hinged slam-latch doors
  • Cab-Over Euro-loft power Front Overhead Bunk

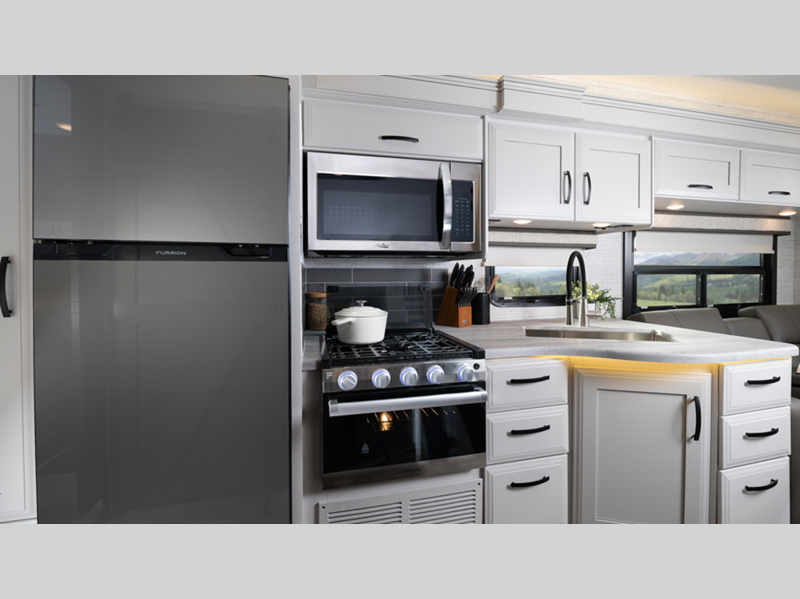

Kitchen

  • Pressed kitchen countertops with large double stainless sink
  • 1.6 cu. ft. microwave
  • 8 cu. ft. gas/electric refrigerator

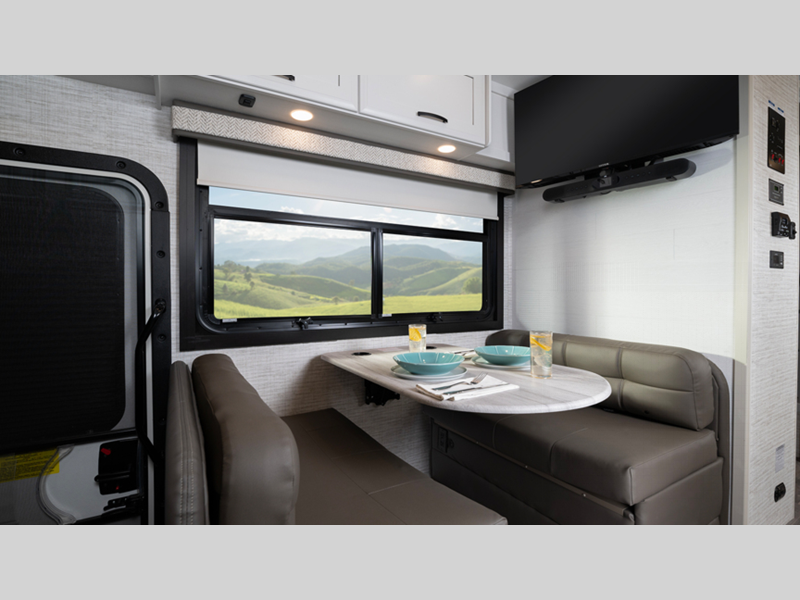

  • Entegra-exclusive easy operation legless dinette table
  • Ball-bearing drawer guides
  • Three-burner range with oven, 9,000-BTU SuperBurner and piezo igniter

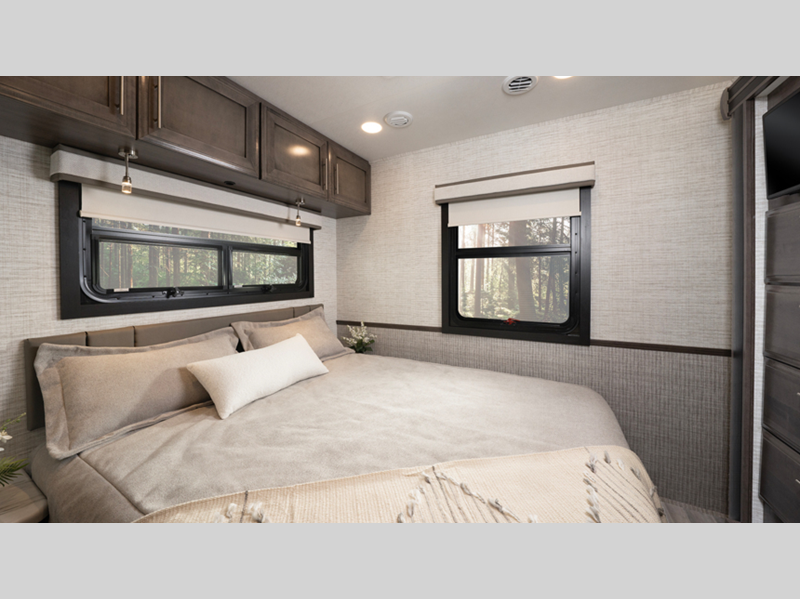

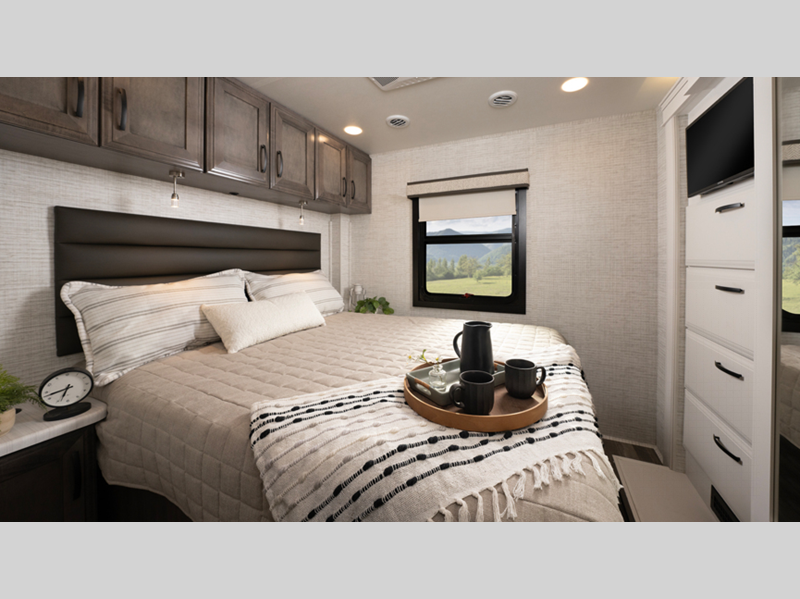

Bedroom

  • Queen-sized bed with bedspread
  • Power vent in bedroom

Bathroom

  • Toilet with foot flush
  • Shower with glass door, skylight and light
  • Powered roof vent with wall switch

Safety

  • Seatbelts in every seating position

Options

  • Canadian Standards

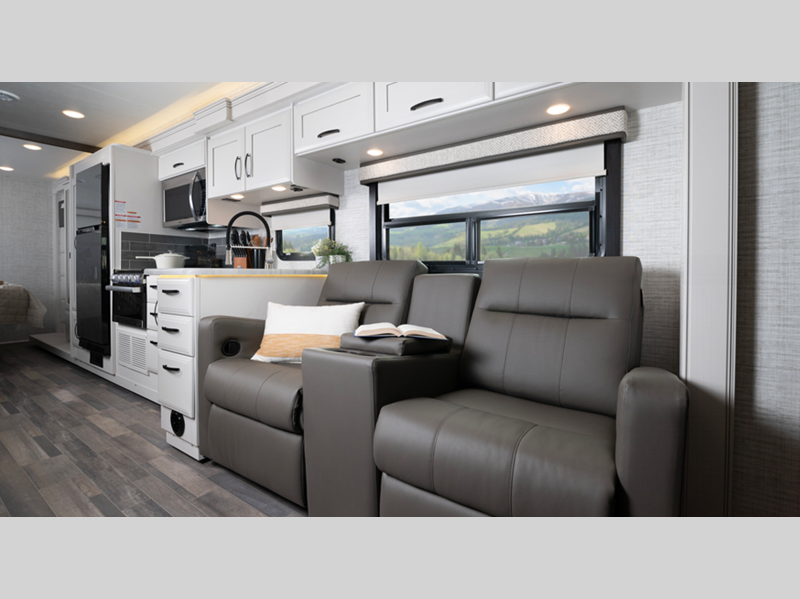

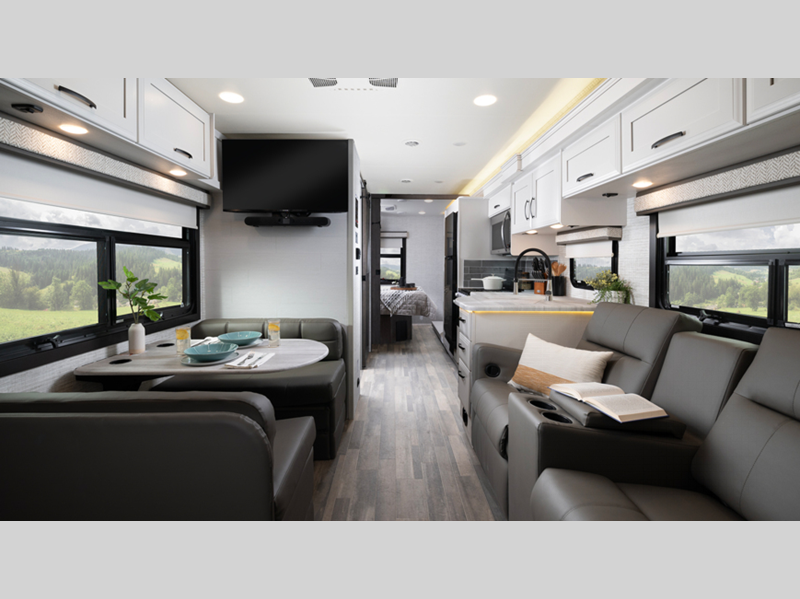

  • Theater seats

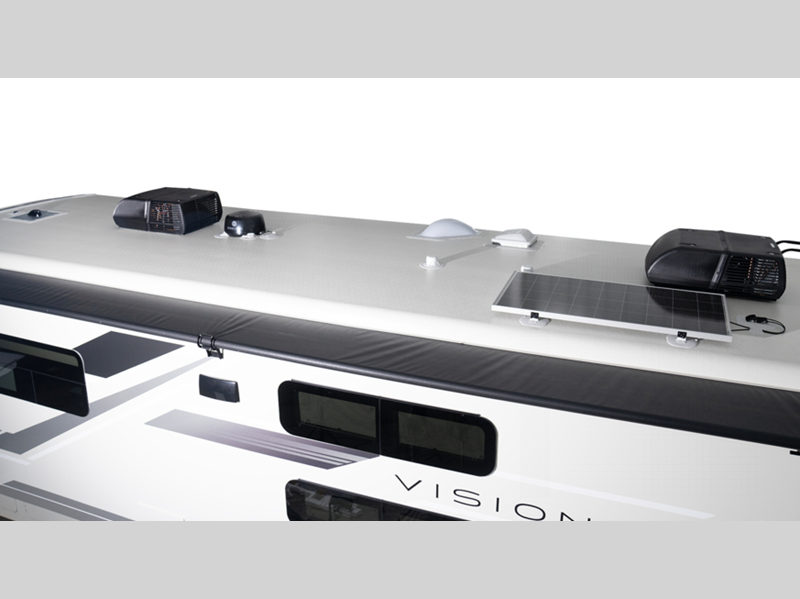

  • Solar Prep
  • Customer Value Package (Mandatory)
    • Computer-balanced driveshaft
    • Jounce bumpers
    • Front and rear stabilizer bars
    • Sony Infotainment dash radio
    • Backup and side-view cameras with monitor
    • Electric patio awning with LED lights
    • Slide out topper awnings
    • LED living room TV

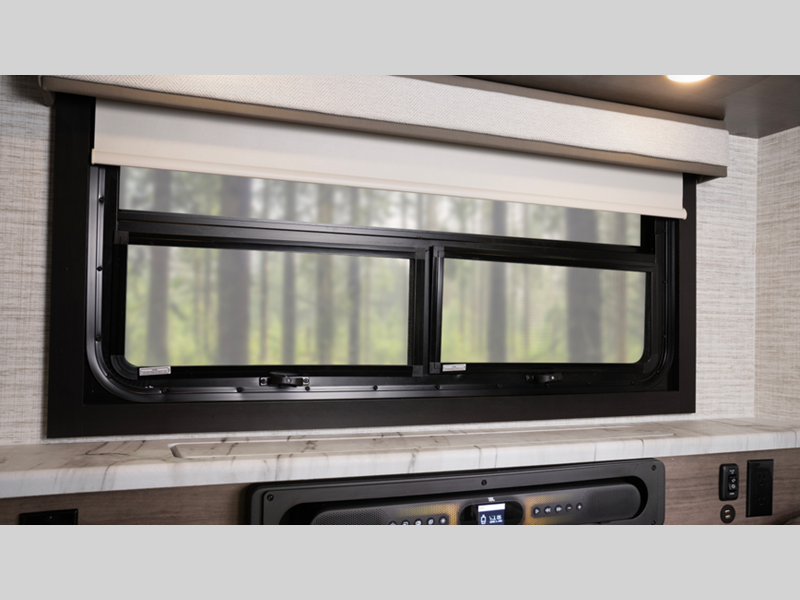

    • Blackout night roller shades
    • Seamless crowned fiberglass roof

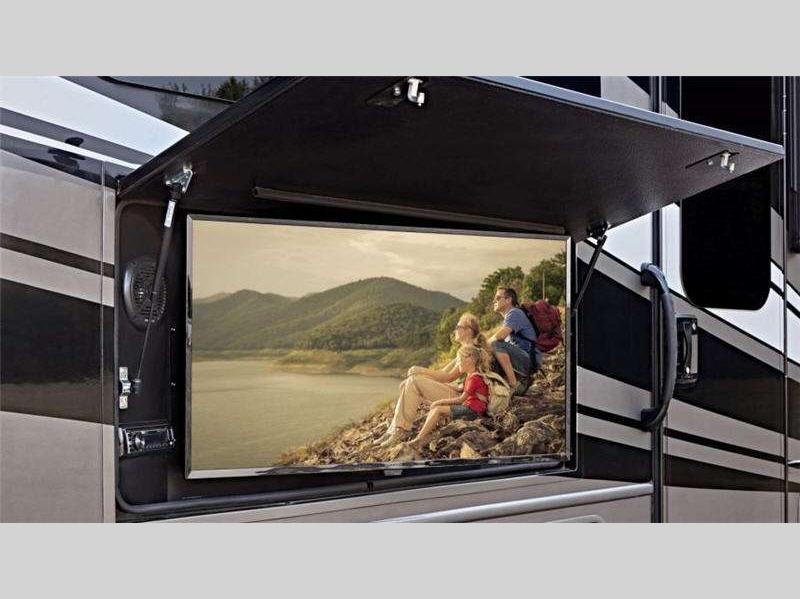

    • Exterior entertainment center with LED TV mounted on swivel bracket & DVD/AM/FM radio & speakers
    • 1,000-watt inverter
    • Driver/passenger cockpit table
    • EZ-Drive: Computer-balanced driveshaft, jounce bumpers, front and rear sway bars, SACHS shocks
  • Bedroom LED TV
  • 12 cu. ft. gas/electric refrigerator (29S, 31R, 31V)
  • Power front overhead bunk

Please see us for a complete list of features and available options!

All standard features and specifications are subject to change.



Manu-Facts:

About Entegra Coach

In the spring of 2008, Entegra Coach became a member of the Jayco family of companies. Ever since, we've taken great pride in the details—and each luxury motorhome we build embodies that principle.



We started building luxury motorcoaches one at a time—with a superior foundation, unrelenting attention to detail and old-world craftsmanship, unmatched engineering innovation, rock-solid construction and a ride that's as smooth and quiet as it is invigorating and well-appointed.



In 2018, our pursuit of the superior luxury motorhome expanded beyond diesel Class A coaches to gas Class As and Class Cs. By building on experience and listening to customers, we're making the Entegra Coach luxury experience a reality for more travelers than ever. As always, we back each coach with personalized customer service and coverage that is unmatched in the industry. So from the moment you drive off the lot, you're not only an owner—you're a member of the family
